Flotec 1/2 HP Thermoplastic Shallow Well Jet Pump/Tank Water System | 8 GPM Well Pumps And Pressure Tanks

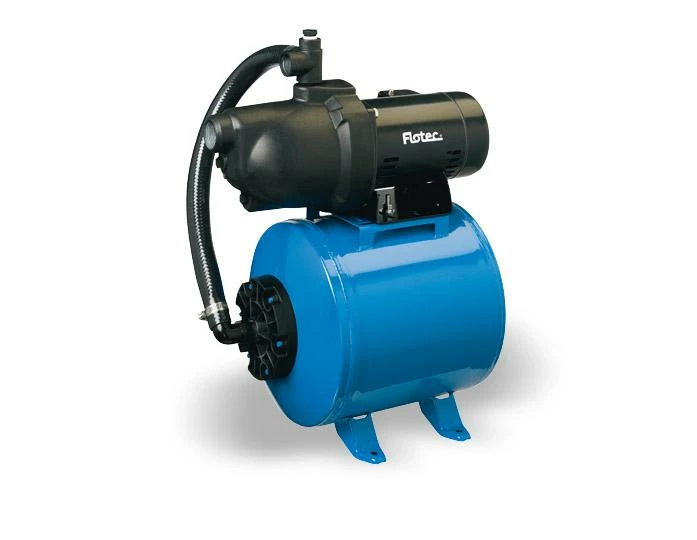

The Flotec 1/2 HP FP401215H-11 Thermoplastic Jet Pump/Pressure Tank System is a quiet and compact all-in-one home water pressure supply system for homes that are not connected to a municipal water supply system.

The Flotec jet pump and pressure switch are pre-mounted on the 15 Gallon pre-charged horizontal pressure tank base, providing a compact and ready to install home water pressurization system.

Flotec 1/2 HP Thermoplastic Pump/Pressure Tank System features:

BODY CONSTRUCTION:  Thermoplastic

HORSEPOWER:  1/2

MAXIMUM CAPACITY:  8 GPM

FLOW at 10′ LIFT and 40 PSI:  6.4 GPH

MAX LIFT:  25′

MAX PRESSURE:  77 psi

PRESSURE SWITCH SETTING:  30/50

SUCTION PIPE SIZE:  1-1/4″ NPT

DISCHARGE PIPE SIZE:  1″ NPT

AMP DRAW (full load):  9.4 amps

VOLTAGE:  115v/230v, 60 Hz (factory preset to 115v)

RECOMMENDED BREAKER:  115V: 15 Amp / 230V: 15 Amp

MAXIMUM WATER TEMPERATURE:  120°F (49°C)

TANK DRAWDOWN:  .6 Gal

DEPTH TO WATER	PRESSURE	FLOW
5′	40 PSI	7.4 GPM
10′	40 PSI	6.4 GPM
15′	40 PSI	6.1 GPM
20′	40 PSI	5.1 GPM
