SJE Rhombus SJE AmpMaster 20 Amp Wide Angle Pump Float Switch

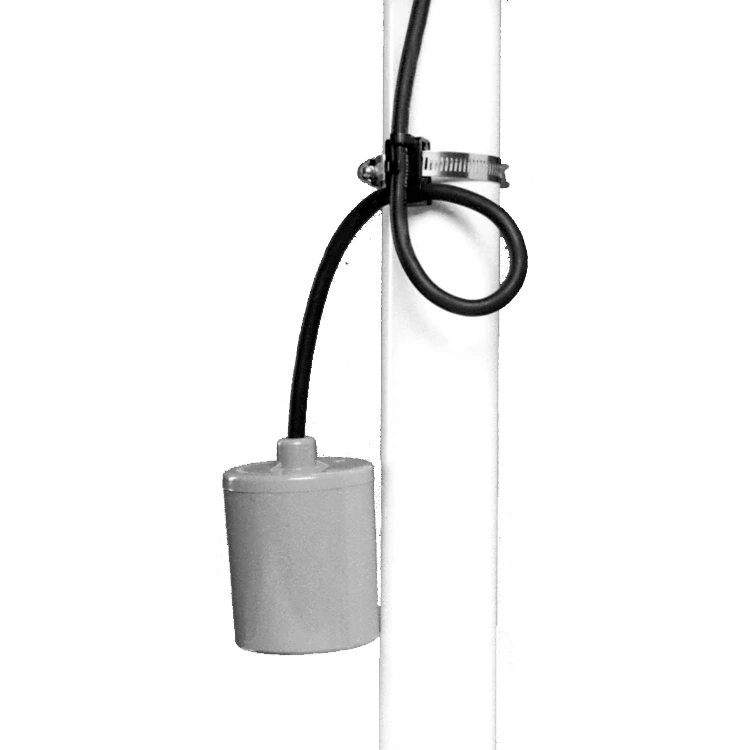

The SJE AmpMaster Wide-Angle Float Switch is a non-mercury, wide-angle mechanical float switch designed for direct control of 120 volt pumps up to 1-1/2 HP, and 240 volt pumps up to 3 HP. It is UL Recognized, CSA Certified, and has a five year warranty.

The SJE AmpMaster Wide-Angle Float Switch is available in  Pump Down (pump empties tank) models only with up to 30′ of cable.

CABLE: Flexible 12 gauge, 2 conductor (UL, CSA) SJOW, water-resistant

FLOAT: 3.05 inches diameter x 3.56 inches long (7.75 x 9.04 cm) high impact, corrosion resistance, PVC housing for use in sewage and water up to 120°F (49°C)

ELECTRICAL:

For direct wiring in 125 VAC or 250 VAC applications (piggy-back plug model not available)

125 VAC 50/60 Hz Single Phase: Maximum Pump Running Current: 20 amps Maximum Pump Starting Current: 120 amps Recommended Pump HP: 1-1/2 HP or less.

250 VAC 50/60 Hz Single Phase: Maximum Pump Running Current: 20 amps Maximum Pump Starting Current: 120 amps Recommended Pump HP: 3 HP or less.

NOTE: This switch must be used with pumps that provide integral thermal overload protection. Certain pumps may require the use of an external capacitor start kit.
